Deskripsi

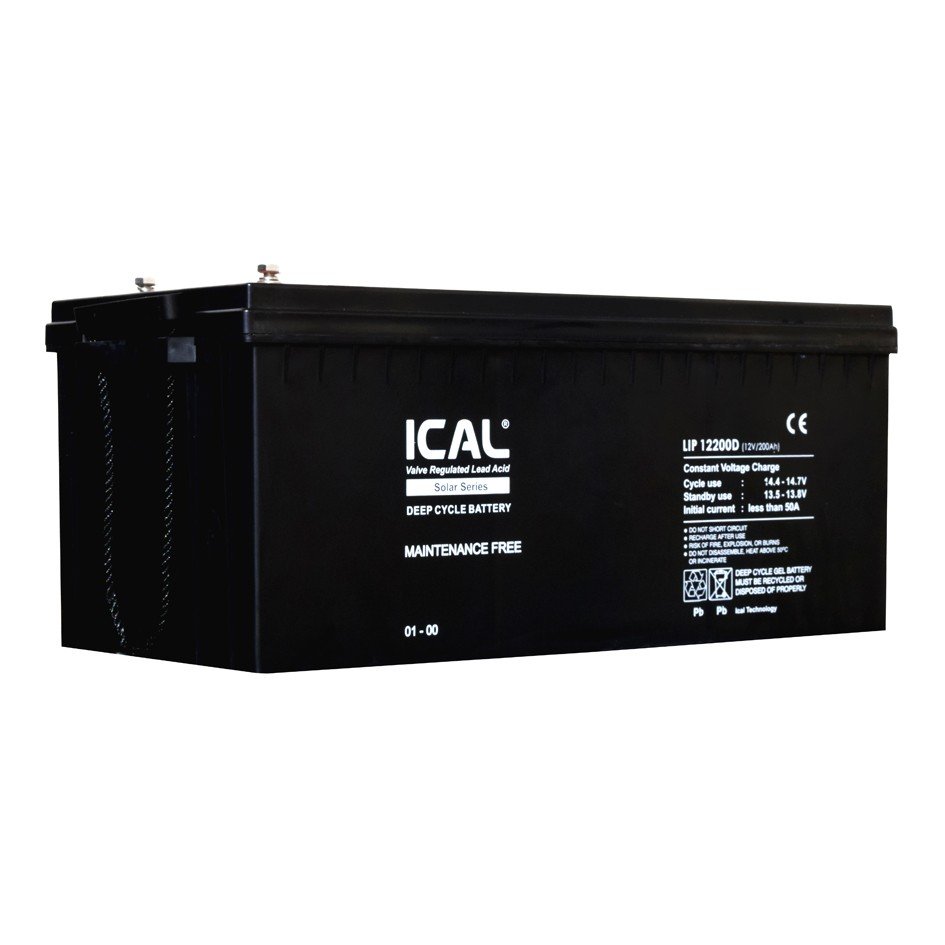

The ICAL gelled battery uses the seated gel technology and is designed for high reliable, maintenance-free power for renewable energy applications. Depending on the advantage gel technology, optimum grid and plate design, the ICAL  gel battery offers highest power and reliability for your equipments.

TECHNICAL SPECIFICATIONS:
Nominal Voltage: 12V
Capacity: 200Ah
Dimension (LxWxH): 522x238x218mm
Approx. Weight: 60.5kg±4%
Terminal Type: T5/T11
Self-discharge (25°C):

• 3 months: Remaining Capacity 91%
• 6 months: Remaining Capacity 82%
• 12 months: Remaining Capacity 65%

Nominal operating temperature: 25°C±3°C (77°F±5°F)
Operating temperature range:

• Discharge: -15°C~50°C (5°F~122°F)
• Charge: -10°C~50°C (14°F~122°F)
• Storage: -20°C~50°C (-4°F~122°F)
